CAN Bus
mPCIe to Dual Isolated CAN Bus 2.0B / J1939 / CANopen
EMUC-B202
Provides
- Baud rate up to 100 / 125 / 250 / 500 (default) / 800 / 1000K
Supports
- SAE J1939 / CANopen high layer protocol (Optional)
Features
- Up to 6000 CAN messages per second (receive data)
- Supports Listen-only mode
- Complies with EN61000-4-5 2.5kV surge protection
- Complies with IEC 60950-1 : 2005 + A1 : 2009 + A2 : 2013 2.5kV HiPOT Protection
- Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
- Supports 3rd mounting hole and USB pin header for out-of-minicard installation

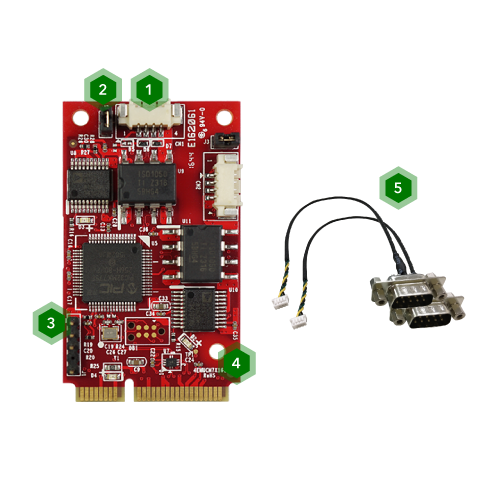

PRODUCT DETAILS AT A GLANCE
- 1CAN Cable Connector
- 2Termination Resistor
- 3USB Input Connector
- 4Mounting Hole
- 530cm DB9 Cable
The EMUC-B202 is a robust CAN Bus 2.0B module (backward compatible with 2.0A), supporting up to 6000 CAN messages per second. It offers advanced features like configuration retention after reboot, listen-only mode, and a CAN message acceptance filter. With Linux SocketCAN compatibility and optional SAE J1939 / CANopen protocols, it meets diverse application needs.
Designed for industrial reliability, it complies with EN61000-4-5 2.5kV surge and IEC 60950-1 2.5kV HiPOT protections. Operating within a temperature range of -40°C to 85°C, it includes a 30μ” golden finger, a 3-year warranty, and optional third mounting hole and USB pin header for flexible installations. Manufactured by Innodisk Taiwan, it’s ideal for AGV, AMR, factory AUTOMATION, robotics, and more.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
TRANSPORTATION
Our solutions enhance operations, management, and security for EVs, buses, subways, and more.
INDUSTRIAL / EMBEDDED
Designed for harsh environments, our products offer high durability to meet the demands of industrial automation and embedded systems.
AUTOMATION
Enhancing efficiency in automated systems, our products provide precise data management and long-lasting performance in industrial applications.
SPECIFICATIONS
| Model Name | EMUC-B202 |
|---|---|
| Module Type | mPCIe to Dual Isolated CAN Bus 2.0B / J1939 / CANopen |
| Form Factor | mPCIe |
| Function | CAN Bus |
| Input I/F | USB 2.0 High Speed (480Mbps) |
| Output I/F | CAN Bus 2.0B |
| Output Port | 2 |
| Output Connector | DB-9 |
| Max. Power Consumption | 3.33W (5V, 665mA ; 3.3V, 1008mA) |
| Dimension (W x L x H/mm) | 30 x 50.9 x 8.35 |
| Temperature | Operation : W/T -40°C ~ 85°C (Ta) Storage : -55°C ~ 95°C (Ta) |
| Vibration | 5G@[7~2000Hz] |
| Shock | [email protected] |
| OS Support | Windows : XP (32bit), 7 (32 / 64bit), 8 / 8.1(32 / 64bit), 10 (32 / 64bit), and above version Linux : Kernel 2.6 and above (Native CDC-ACM driver), Kernel 2.6.38 and above (SocketCAN Driver), 32 / 64bit Kernel 2.6.38 and above (SocketCAN Driver), 32 / 64bit |
| Warranty | 3 Years |
| Notes | Software API compatible with EMUC-B202 / EGPC-B201. |
ORDER INFORMATION
| P/N | Description |
EMUC-B202-W1 | mPCIe to Dual Isolated CAN 2.0B / Wide Temperature |
EMUC-B202-W2 | mPCIe to Dual Isolated J1939 / Wide Temperature |
| EMUC-B202-W3 | mPCIe to Dual Isolated CANopen / Wide Temperature |
