M.2
64GB ~ 1TB

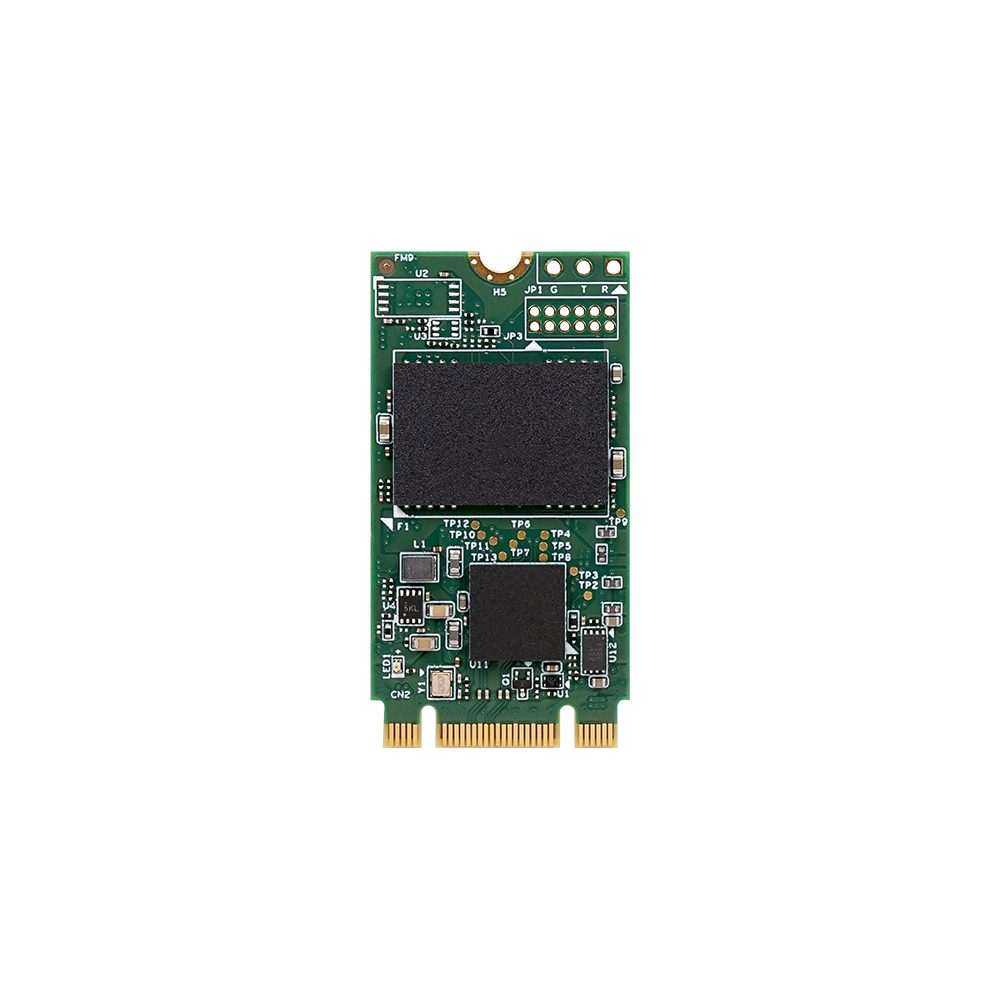

M.2 (S42) 3TEB
Features
- SATA III solution for industrial field
- High IOPS
- Low power consumption
- iSMART disk health monitoring
- iPower Guard for protecting unstable start up and shut down.
- iData Guard for abnormal power failure
- Supports wide temperature from -40°C to 85°C
Innodisk M.2 (S42) 3TEB is SATA III 6.0 Gb/s Flash based disk, which adopts latest SATA III NAND controller with Innodisk’s exclusive L³ FW architecture. The upgraded L³ FW architecture, combining Innodisk signature 4K mapping algorithm L² FW architecture with powerful LDPC technology, makes 3TEB series have outstanding high IOPS, better data integrity and extended lifespan through reducing the bad block number happening. Built-in thermal sensor, and iData Guard ensure data integrity and reliability of M.2 (S42) 3TEB for industrial applications.
iData Guard – DATA PROTECTION TECHNOLOGY
iData Guard enables the immediate sending of a command in the event of a sudden power failure, interrupting read and write commands from the system and ensuring that the last command can be completed. This preserves data integrity on the SSD, protecting data security.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
INDUSTRIAL / EMBEDDED
Designed for harsh environments, our products offer high durability to meet the demands of industrial automation and embedded systems.
SPECIFICATIONS
| Model Name | M.2 (S42) 3TEB |
|---|---|
| Flash Type | 3D TLC |
| Interface | SATA III 6.0 Gb/s |
| Form Factor | M.2 2242 B+M Key |
| Capacity | 64GB ~ 1TB |
| Sequential R / W (MB/sec, max.) | 550 / 480 |
| P/E Cycle | 3,000 |
| TBW (Max.) | 900 |
| Storage Temperature | -40°C ~ 85°C |
| Max. Power Consumption | 1.2W |
| Max. Channels | 2 |
| External DRAM Buffer | N |
| Feature | S.M.A.R.T. |
| Dimension (W x L x H/mm) | 22.0 x 42.0 x 3.5 |
| Vibration | 20G@[7 ~ 2000Hz] |
| Shock | [email protected] |
| MTBF | >3 million hours |
| Warranty | 3 Years |
ORDER INFORMATION
Operating Temperature | Standard Grade (0°C ~ 70°C) | Industrial Grade (-40°C ~ 85°C) |
64GB | DEM24-64GIC1KCASF | DEM24-64GIC1KWASF |
128GB | DEM24-A28IC1KCADF | DEM24-A28IC1KWADF |
256GB | DEM24-B56IC1KCADF | DEM24-B56IC1KWADF |
512GB | DEM24-C12IC1KCADF | DEM24-C12IC1KWADF |
1TB | DEM24-01TIC1KCADF | DEM24-01TIC1KWADF |
