EDSFF
PCIe Gen4 Solution For Data Center

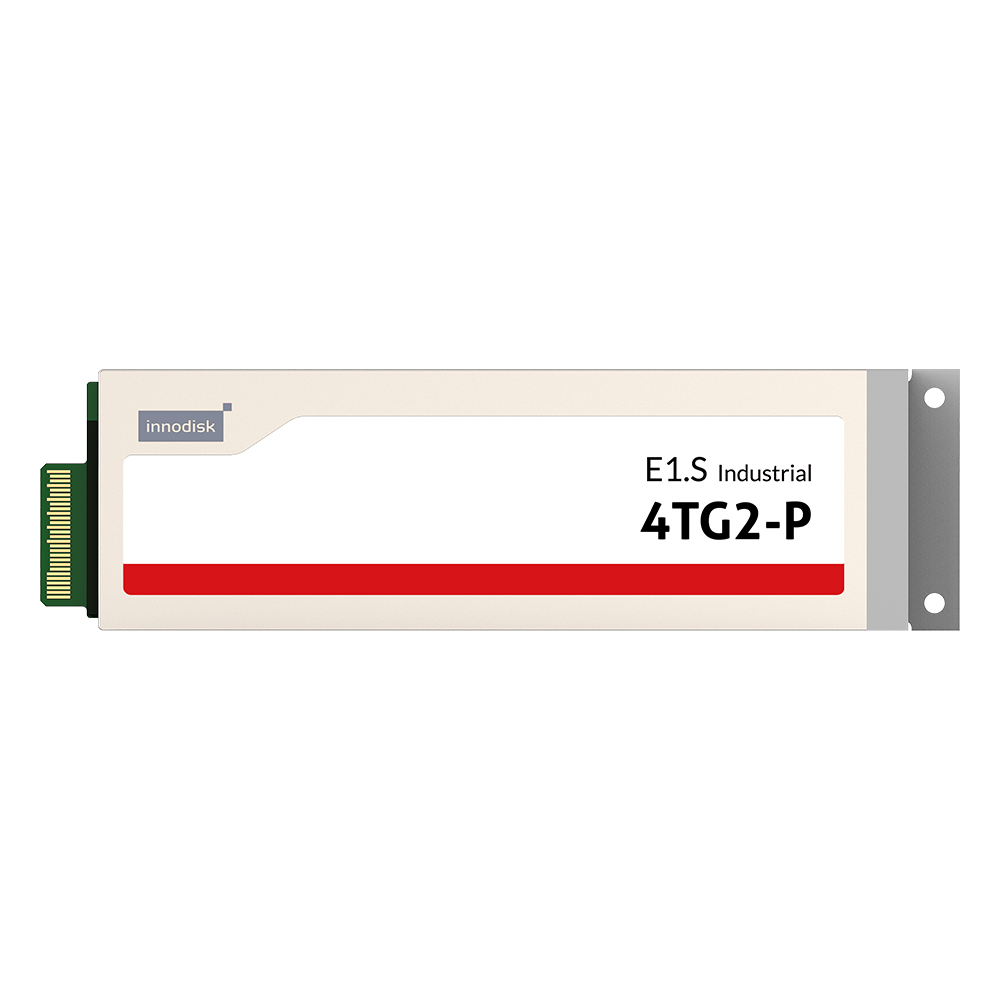

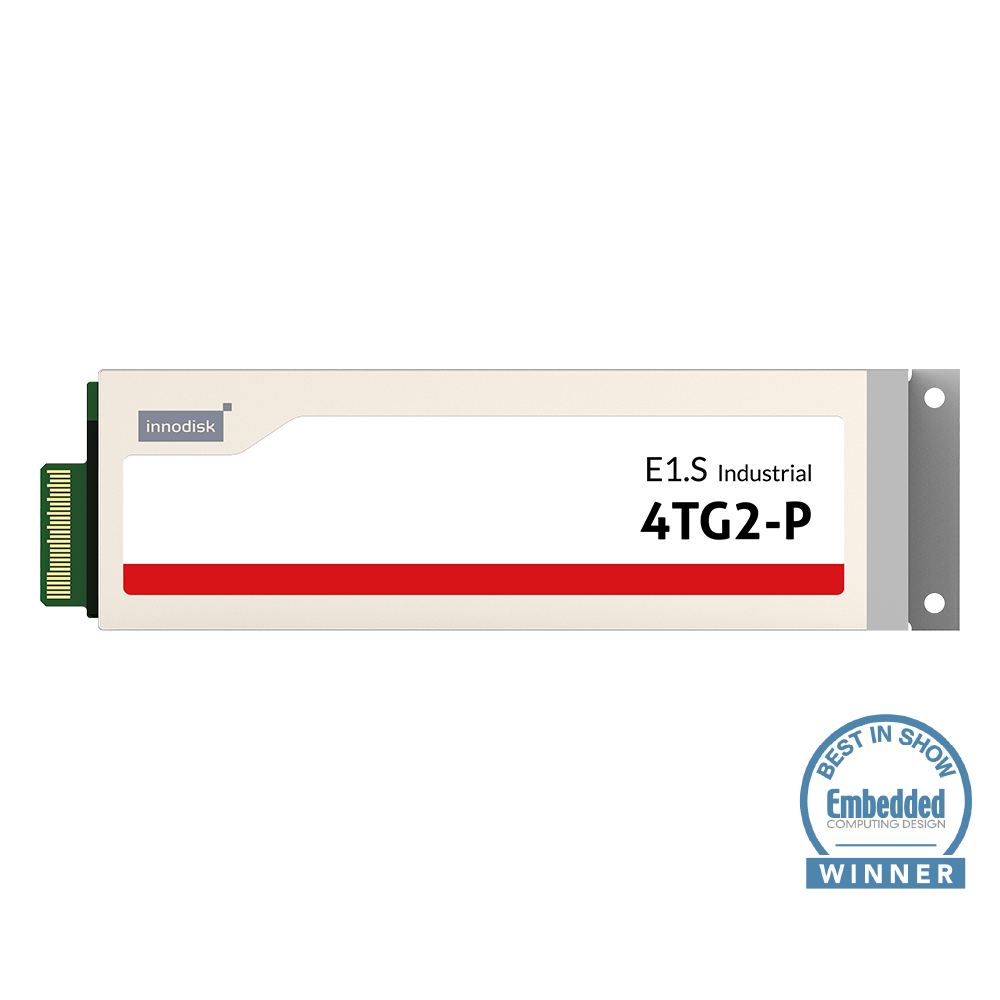

E1.S 4TG2-P
Features
- Up to 6,900 / 4,700MB/s read and write performance
- Supports -40°C to 85°C with dynamic thermal throttling to maintain SSD stability
- High storage density up to 8TB on a single E1.S drive
- PLP (iCell) technology for power loss protection
The Innodisk E1.S 4TG2-P is an NVMe SSD in the standard E1.S form factor, featuring a PCIe Gen 4 x4 interface and 3D TLC NAND Flash. Its Die RAID protection enhances data integrity by reducing the occurrence of bad blocks.
With ultra-fast speeds, high IOPS, and up to 8TB capacity, the E1.S 4TG2-P is ideal for servers and data-intensive applications.
WIDE TEMPERATURE TOLERANCE FOR EXTREME SCENARIOS
The E1.S 4TG2-P is engineered for superior thermal management in edge servers, with a temperature range of -40°C to 85°C. Its unique form factor and Dynamic Thermal Throttling mechanism enable sustained peak performance under intensive workloads. Additionally, Innodisk's 15mm asymmetrical heatsink design ensures exceptional heat dissipation and efficiency.
MAXIMIZED STORAGE CAPACITY
The E1.S 4TG2-P features an advanced design that significantly increases storage density, offering up to 8TB of capacity on a single drive. Even within the compact space of a 1U server, it provides exceptional storage performance and flexibility to the system.
iCell Technology – POWER LOSS PROTECTION
Innodisk's iCell Technology safeguards mission-critical data on DRAM-based SSDs during unexpected power failures. Integrated iCells deliver an instantaneous charge to ensure data is securely stored, preventing any loss and ensuring data integrity.
AES 256-bit DATA ENCRYPTION & TCG OPAL 2.0 SUPPORT
Innodisk SSDs utilize AES 256-bit encryption, the US government’s standard for securing confidential data, while also supporting TCG Opal 2.0 for enhanced device management and user-friendly authentication.
TAILORED TO YOUR SPECIFIC NEEDS

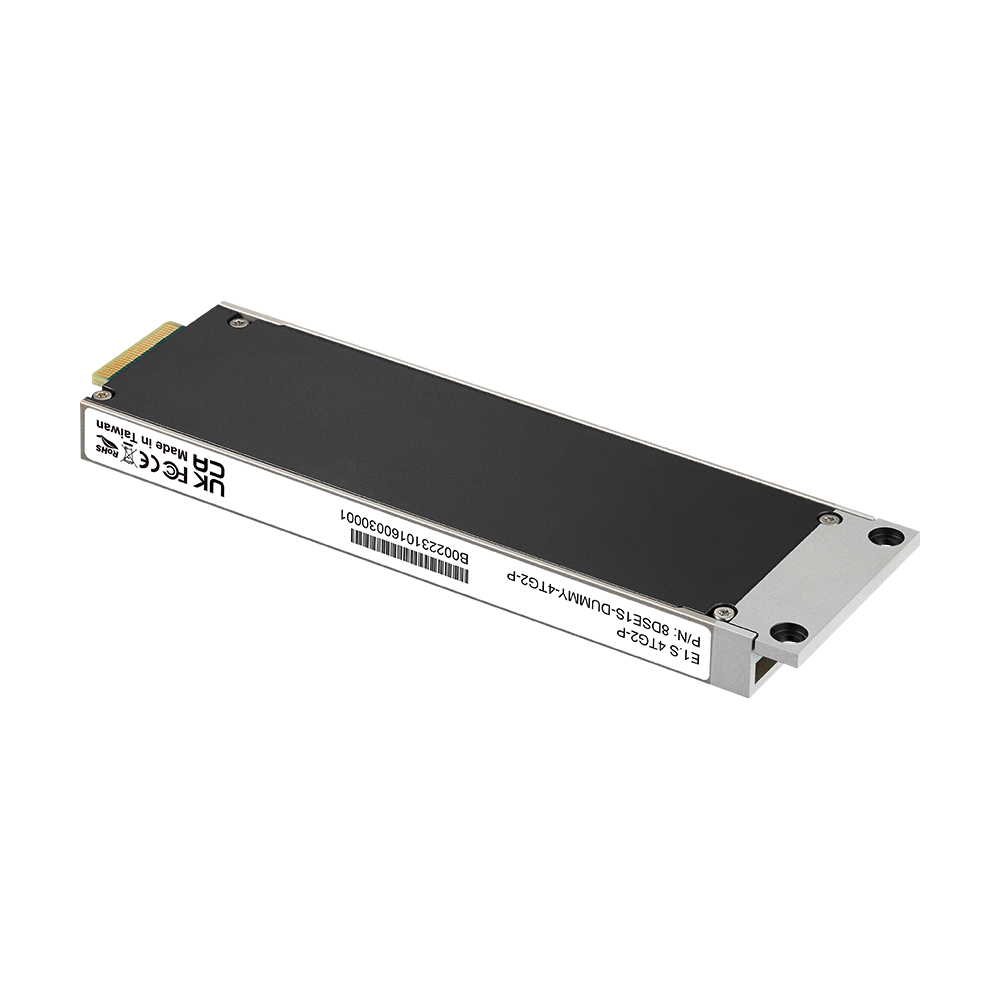

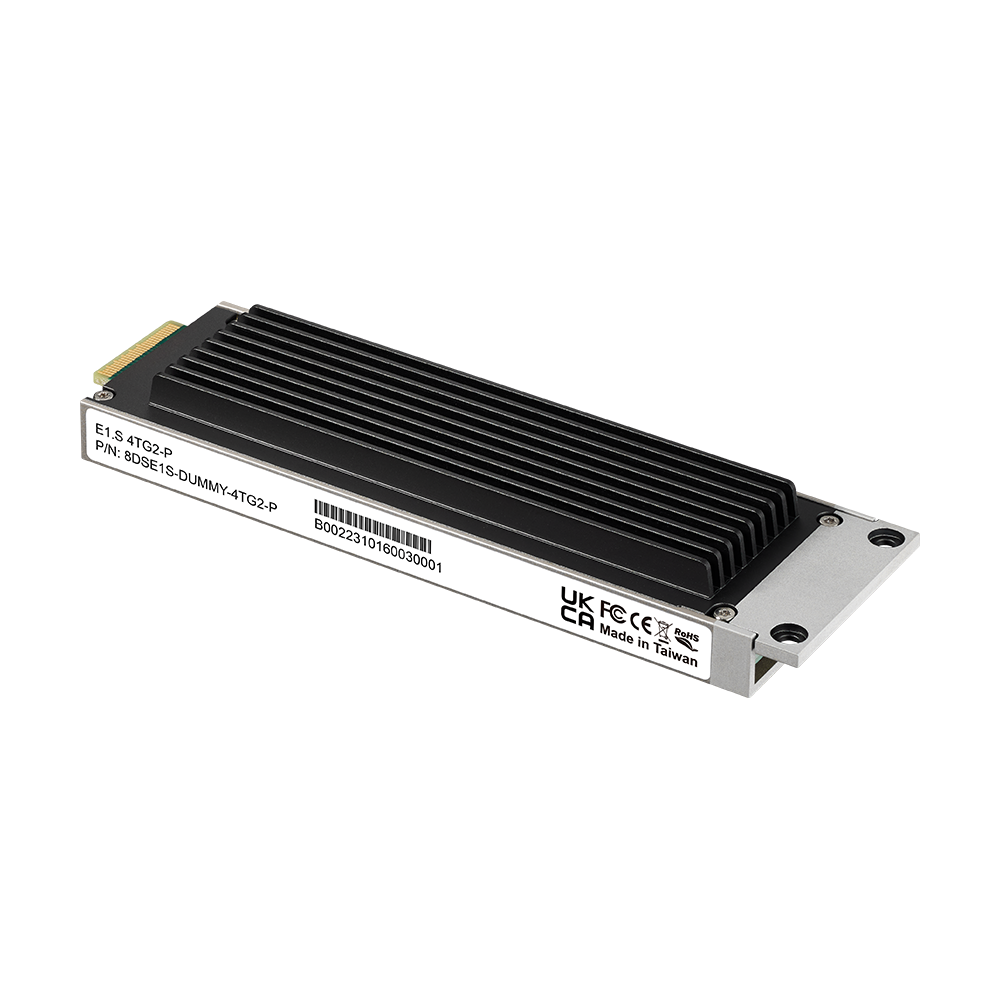

HEAT SINK CUSTOMIZATION
Innodisk provides different heights of heat sinks to meet your specific storage needs.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
TRANSFORMING DATA CENTER WITH EFFICIENCY
The rising trend of edge AI is driving the need for data storage and SSDs that support high-capacity tasks with high performance and low latency.
SPECIFICATIONS
| Model Name | E1.S 4TG2-P |
|---|---|
| Flash Type | 3D TLC |
| Interface | PCIe Gen 4 x4 |
| Form Factor | E1.S |
| Capacity | 512GB ~ 8TB |
| Sequential R / W (MB/sec, max.) | 6,900 / 4,700 |
| P/E Cycle | 3,000 |
| TBW (Max.) | 19,129 |
| Storage Temperature | -40°C ~ 85°C |
| Max. Power Consumption | 12W |
| Max. Channels | 8 |
| External DRAM Buffer | Ｙ |
| Features | PLP (iCell), AES, TCG Opal 2.0, S.M.A.R.T. |
| Series | Data Center SSD |
| Dimension (W x L x H/mm) | 5.9mm : 31.5 x 111.5 x 5.9 9.5mm : 33.75 x 118.75 x 9.5 15mm : 33.75 x 118.75 x 15.0 |
| Vibration | 20G@[7 ~ 2000Hz] |
| Shock | [email protected] |
| MTBF | >3 million hours |
| Warranty | 3 Years |
ORDER INFORMATION
Operating Temperature | Standard Grade | Industrial Grade |
512GB | DGE1S-C12DP1KCAEFP% | DGE1S-C12DP1KWAEFP% |
| 1TB | DGE1S-01TDP2KCAEFP% | DGE1S-01TDP2KWAEFP% |
| 2TB | DGE1S-02TDP2KCAEFP% | DGE1S-02TDP2KWAEFP% |
| 4TB | DGE1S-04TDP2KCAEFP% | DGE1S-04TDP2KWAEFP% |
| 8TB | DGE1S-08TDP2KCBEFP% | DGE1S-08TDP2KWBEFP% |
Operation temperature based on temperature obtained from S.M.A.R.T.
% : Non-existent = 5.9mm / H = 9.5mm enclosure / H1 = 15mm enclosure
E1.S 4TG2-P specifications are subject to change.
