EGPL-22N1

Powered by

Intel i226 controller

Provides

Dual 2.5GbE LAN ports

Features

Complies with EN61000-4-2 (ESD) Air-15kV, Contact-8kV
Transformer on PCB for flexible cable design
External LED indicator pin for speed 10 / 100 / 1000 / 2500
Operating temperature from -40°C to 85°C

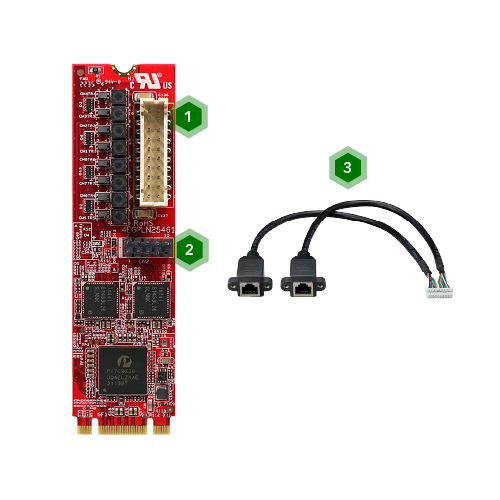

PRODUCT DETAILS AT A GLANCE

1LAN Connector
2External LED Indicator Pin
325cm RJ45 Cable

EDGE AI FPGA Solution in Factory Automation

BORN FOR SUPERIOR PERFORMANCE

Innodisk's M.2 GbE LAN cards offer reliable 2.5GbE network connectivity powered by advanced Intel Ethernet chips. With versatile cable options, these cards ensure stable and high-performance networking, making them ideal for aerospace, in-vehicle, industrial, and outdoor environments.

FLEXIBLE CABLE DESIGN

The innovative non-daughterboard design with an on-PCB transformer enables flexible cable options while ensuring exceptional reliability. Built for demanding environments, it offers robust performance even under challenging conditions.

RELIABLE PERFORMANCE IN HARSH ENVIRONMENTS

To meet the demands of harsh working conditions, the Innodisk EGPL-22N1 is powered by the Intel Ethernet Controller i226 Series. It is certified with ESD protection and supports a wide operating temperature range of -40°C to 85°C. These features ensure reliable device protection and stable performance across various applications.

● Intel Ethernet Controller i226 Series

● ESD Testing : EN61000-4-2 : Air-15kV, Contact-8kV

● Wide Temperature : -40°C ~ 85°C

IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS

TRANSPORTATION

Our solutions enhance operations, management, and security for EVs, buses, subways, and more.

AUTOMATION

Enhancing efficiency in automated systems, our products provide precise data management and long-lasting performance in industrial applications.

AEROSPACE

We create cutting-edge solutions tailored to the aerospace industry's unique challenges.

RETAIL

Powering smart retail systems, our solutions enable efficient inventory management, seamless point-of-sale operations, and insightful customer analytics.

規格表

Model Name	EGPL-22N1
Module Type	M.2 to Dual 2.5GbE LAN Module
Form Factor	M.2 2280 B+M Key
Function	LAN
Input I/F	PCI Express 2.1 x2
Output I/F	2.5GbE LAN
Output Port	2
Output Connector	RJ45
Max. Power Consumption	3.204W (3.3V, 971mA)
Dimension (W x L x H/mm)	22 x 80 x 9
Temperature	Operation : S/T 0°C ~ 70°C ; W/T -40°C ~ 85°C (Ta) Storage : -55°C ~ 95°C (Ta)
Vibration	5G@[7~2000Hz]
Shock	[email protected]
OS Support	Windows : 10 (64bit), and above version Linux (igc) : Kernel 5.x version
Warranty	3 Years
Notes	● Please download driver from Intel official website. ● Linux upstream kernel release – from 5.16.18. ● Not recommend used in VMware ESXi due to High Latency. ● Not support Intel vPro.
