M.2
128GB ~ 2TB
M.2 (P80) 3TE8 B+M Key
Features
- PCIe Gen 3 x2, NVMe SSD
- Innodisk 3D TLC NAND
- Standard / Wide temperature
- iData Guard
- Dynamic thermal management
- Hybrid write mode with SLC cache enable
- Support TCG Opal function

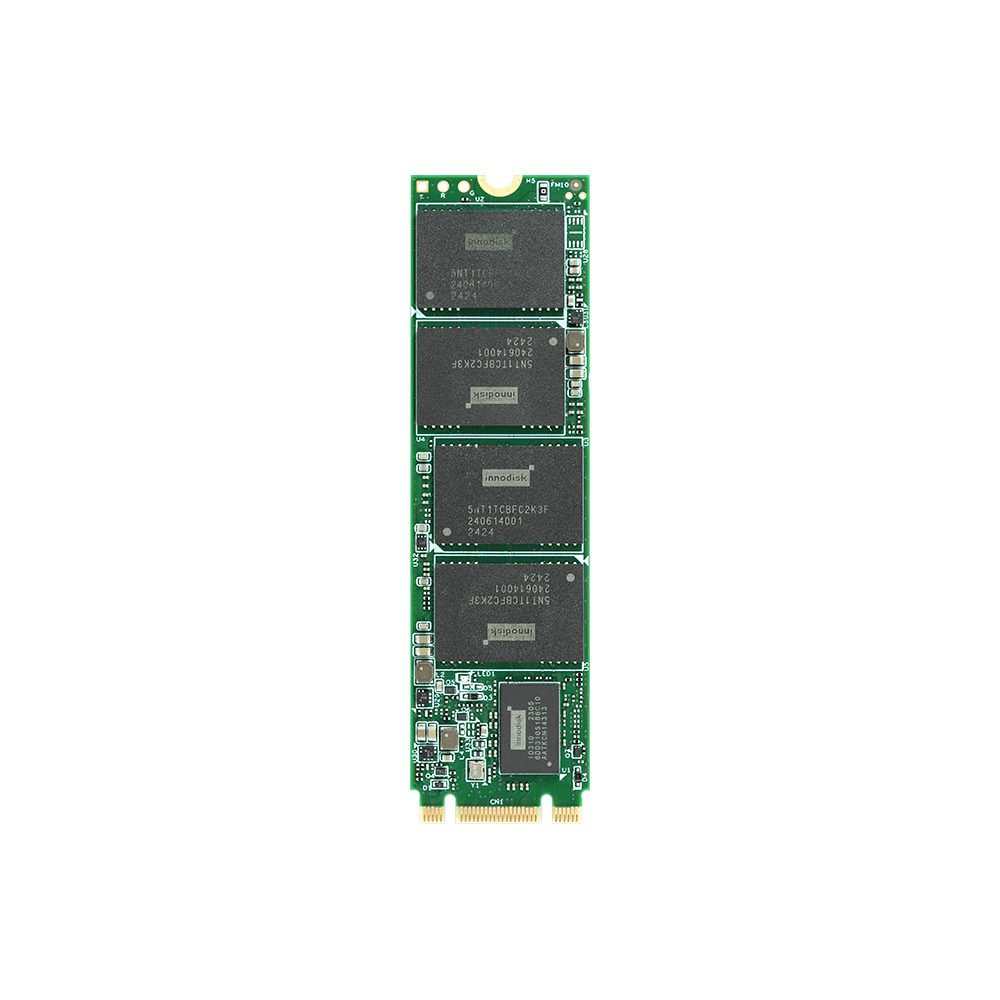

Innodisk M.2 (P80) 3TE8 B+M Key is a NVM Express DRAM-less SSD designed with PCIe interface and industrial 3D TLC NAND Flash. M.2 (P80) 3TE8 B+M Key supports PCIe Gen 3 x2 and it is compliant with NVMe 1.4, providing excellent top and also sustained performance. Equipped with Error Correction Code (ECC) technology, it provides comprehensive End-to-End Data Path Protection (ETEP), ensuring secure data transmission between the host system and NAND Flash.
Innodisk M.2 (P80) 3TE8 B+M Key is designed with AES engine, which is a built-in controller. When controller receives the data package from host, AES engine encrypts the data package and saves the encrypted data into NAND Flash. Thus, unauthorized personal has no access to decrypt the data in NAND Flash.
AES 256-bit DATA ENCRYPTION & TCG Opal 2.0 SUPPORT
Innodisk SSDs utilize AES 256-bit encryption, the US government’s standard for securing confidential data, while also supporting TCG Opal 2.0 for enhanced device management and user-friendly authentication.
iData Guard – DATA PROTECTION TECHNOLOGY
iData Guard enables the immediate sending of a command in the event of a sudden power failure, interrupting read and write commands from the system and ensuring that the last command can be completed. This preserves data integrity on the SSD, protecting data security.
TAILORED TO YOUR SPECIFIC NEEDS

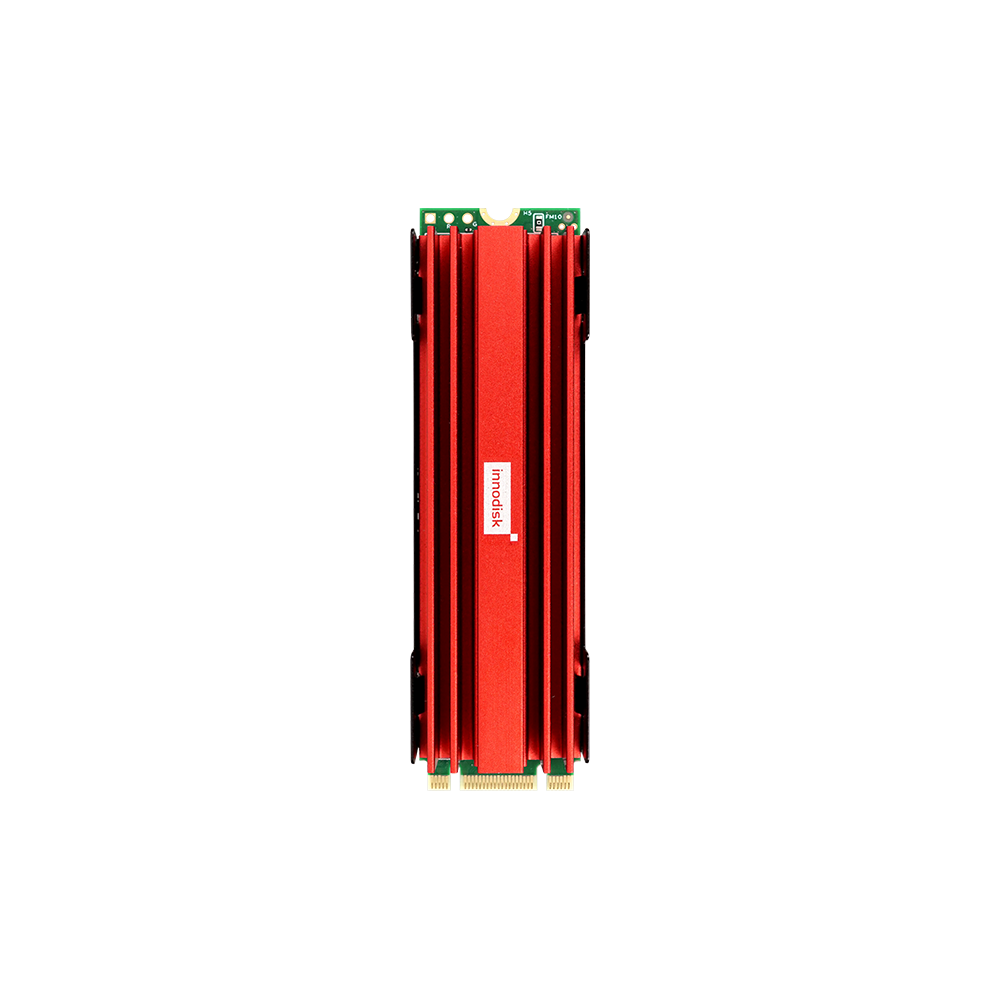

HEAT SINK CUSTOMIZATION
Innodisk provides a high-quality heat sink designed to meet your specific storage needs.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
INDUSTRIAL / EMBEDDED
Designed for harsh environments, our products offer high durability to meet the demands of industrial automation and embedded systems.
SURVEILLANCE & SAFETY
Our solutions deliver advanced analytics and instant response for modern surveillance needs.
AUTOMATION
Enhancing efficiency in automated systems, our products provide precise data management and long-lasting performance in industrial applications.
COMMUNICATION
Our solutions ensure reliable and uninterrupted performance, supporting networking and critical telecom infrastructure even under heavy loads.
SPECIFICATIONS
| Model Name | M.2 (P80) 3TE8 B+M Key |
|---|---|
| Flash Type | 3D TLC |
| Interface | PCIe Gen 3 x2 |
| Form Factor | M.2 2280 B+M Key |
| Capacity | 128GB ~ 2TB |
| Sequential R / W (MB/sec, max.) | 1,750 / 1,650 |
| P/E Cycle | 3,000 |
| TBW (Max.) | 2,304 |
| Storage Temperature | -40°C ~ 85°C |
| Max. Power Consumption | 2.8W |
| Max. Channels | 4 |
| External DRAM Buffer | N |
| Features | AES, TCG Opal 2.0, S.M.A.R.T. |
| Dimension (W x L x H/mm) | WT with heatsink: 25.0 x 80.0 x 14.45 Pure M.2: 22.0 x 80.0 x 2.15 |
| Vibration | 20G@[7 ~ 2000Hz] |
| Shock | [email protected] |
| MTBF | >3 million hours |
| Warranty | 3 Years |
ORDER INFORMATION
Operating Temperature | Standard Grade (0°C ~ 70°C) | Industrial Grade (-40°C ~ 85°C) |
128GB | DEM28-A28DS2KCCDFS | DEM28-A28DS2KWCDFSH |
256GB | DEM28-B56DS2KCCQFS | DEM28-B56DS2KWCQFSH |
512GB | DEM28-C12DS2KCCQFS | DEM28-C12DS2KWCQFSH |
1TB | DEM28-01TDS2KCCQFS | DEM28-01TDS2KWCQFSH |
2TB | DEM28-02TDS2KCCQFS | DEM28-02TDS2KWCQFSH |
