SD Card & MicroSD Card
4GB ~ 32GB

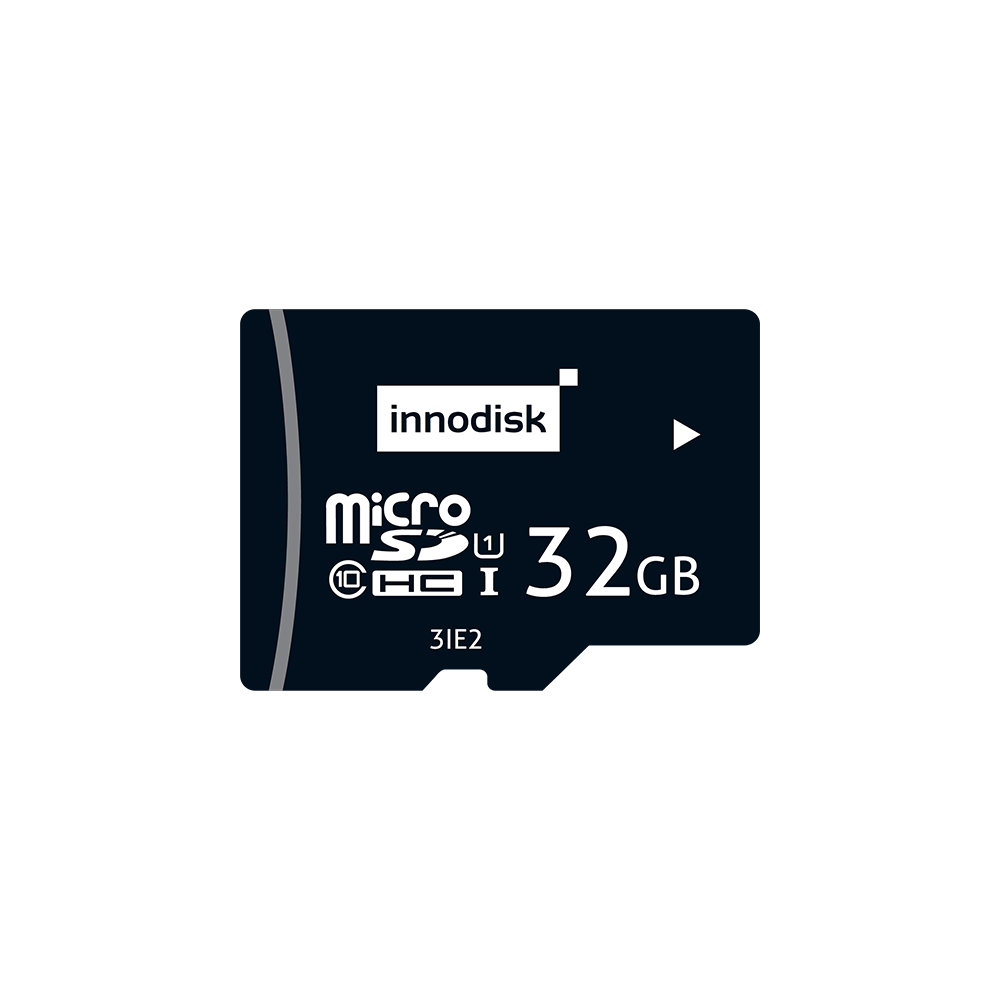

MicroSD Card 3IE2
Features
- SD 3.0 interface
- Support Class 10 with UHS-I
- Adopt MLC NAND Flash
- High performance
- Targeted for portable and stationary applications
- S.M.A.R.T. function supported
Innodisk MicroSD 3IE2, supporting class 10 with UHS-I, is specifically designed for industrial PC and embedded applications. The 3.0 series SD card has the latest firmware architecture and Flash algorithms, including superior wear leveling and read disturb management, ensuring the highest reliability and endurance.
With its low power consumption and features above, the Innodisk MicroSD 3IE2 series can be applied to industrial automation, SBC (single-board computer), medical equipment, infotainment, and mobile applications.
Wear Leveling Technology – EXTENDING PRODUCT LIFESPAN
Innodisk adopts innovative wear leveling technology to revolutionize SSD storage methods, thereby improving its lifespan. By applying this technology to both dynamic and static storage blocks, it eliminates the traditional concepts of hot zones and cold zones, achieving full-area wear balance and optimizing the use of every flash memory block.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
TRANSPORTATION
Our solutions enhance operations, management, and security for EVs, buses, subways, and more.
INDUSTRIAL / EMBEDDED
Designed for harsh environments, our products offer high durability to meet the demands of industrial automation and embedded systems.
AUTOMATION
Enhancing efficiency in automated systems, our products provide precise data management and long-lasting performance in industrial applications.
SPECIFICATIONS
| Model Name | MicroSD 3IE2 |
|---|---|
| Flash Type | iSLC (MLC) |
| Interface | SD 3.0 |
| Form Factor | MicroSD Card |
| Capacity | 4GB ~ 32GB |
| Sequential R / W (MB/sec, max.) | 86 / 45 |
| P/E Cycle | 20,000 |
| TBW (Max.) | 522 |
| Storage Temperature | -55°C ~ 95°C |
| Max. Power Consumption | 0.6W |
| Max. Channels | 1 |
| External DRAM Buffer | N |
| Features | S.M.A.R.T. |
| Dimension (W x L x H/mm) | 11.0 x 15.0 x 1.0 |
| Vibration | 20G@[7 ~ 2000Hz] |
| Shock | [email protected] |
| MTBF | >3 million hours |
| Warranty | 5 Years |
ORDER INFORMATION
| Operating Temperature | Extended Grade (-25°C ~ 85°C) |
4GB | DHSDM-04GE21SEASK |
8GB | DHSDM-08GE21SEASK |
16GB | DHSDM-16GE21SEASK |
32GB | DHSDM-32GE21SEASK |
