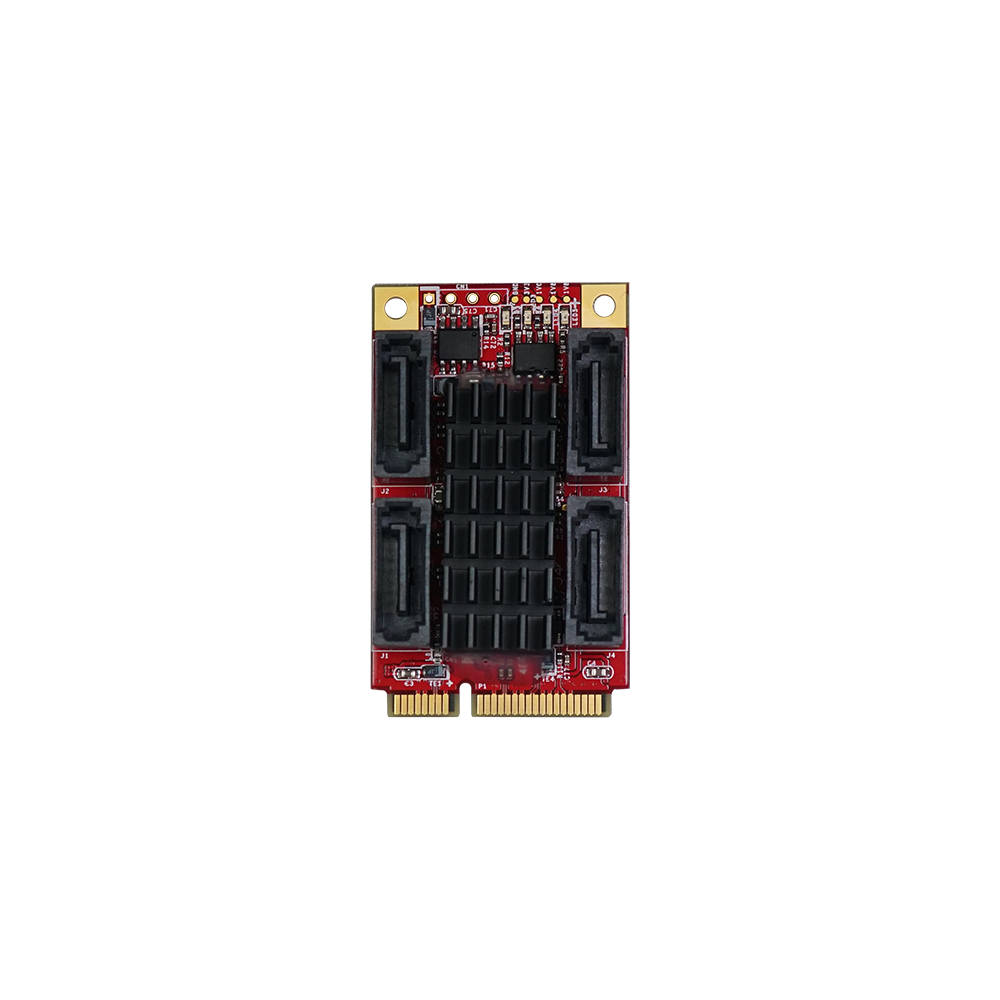

mPCIe to Four SATA III Module
EMPS-3401
Features
- mPCIe to four SATA III ports
- Supports AHCI, Port-multiplier
- Supports Native Command Queuing
- Supports error reporting, recovery and correction
- Supports operating temperature from -40°C to 85°C
- 30μ" golden finger, 3-year warranty
- Industrial design, manufactured in Innodisk Taiwan
PRODUCT DETAILS AT A GLANCE
- 1SATA Connector
The EMPS-3401 is an mPCIe card that expands your system with four SATA III ports, supporting AHCI, Port-multiplier, and Native Command Queuing for efficient and reliable data handling. With features like error reporting, recovery, and correction, it ensures robust performance. An optional industrial temperature range (-40°C to 85°C) makes it ideal for harsh environments. Built with a 30μ" golden finger and backed by a 3-year warranty, the EMPS-3401 is designed for industrial-grade reliability.
IMPLEMENTED WITH SUCCESS IN DYNAMIC ENVIRONMENTS
EDGE SERVER
Designed for edge computing, our products ensure stable performance in harsh conditions, supporting real-time data processing at the edge device.
DATA CENTER
Driving the backbone of modern computing, our solutions deliver high performance and reliability for data-intensive operations.
TRANSPORTATION
Our solutions enhance operations, management, and security for EVs, buses, subways, and more.
INDUSTRIAL / EMBEDDED
Designed for harsh environments, our products offer high durability to meet the demands of industrial automation and embedded systems.
SURVEILLANCE & SAFETY
Our solutions deliver advanced analytics and instant response for modern surveillance needs.
AUTOMATION
Enhancing efficiency in automated systems, our products provide precise data management and long-lasting performance in industrial applications.
SPECIFICATIONS
| Model Name | EMPS-3401 |
|---|---|
| Module Type | mPCIe to Four SATA III Module |
| Form Factor | mPCIe |
| Function | Storage |
| Input I/F | PCI Express 2.0 x1 |
| Output I/F | SATA III |
| Output Port | 4 |
| Output Connector | SATA 7-pin |
| Max. Power Consumption | 2.74W (3.3V x 830mA) |
| Dimension (W x L x H/mm) | 30 x 50.9 x 10.9 |
| Temperature | Operation : S/T 40° ~ 85°C (Ta) Storage : -55°C ~ 95°C (Ta) |
| Vibration | 5G@[7~2000Hz] |
| Shock | [email protected] |
| OS Support | -- |
| Warranty | 3 Years |
| Notes | -- |
ORDER INFORMATION
| P/N | Description |
| EMPS-3401-W1 | mPCIe to Four SATA III Module / Wide Temperature |
